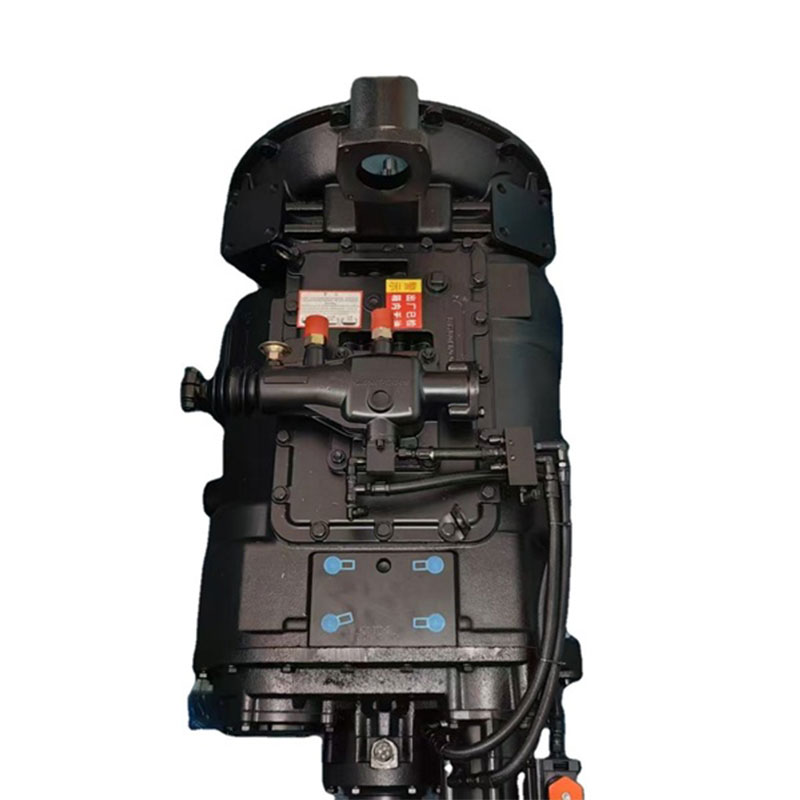

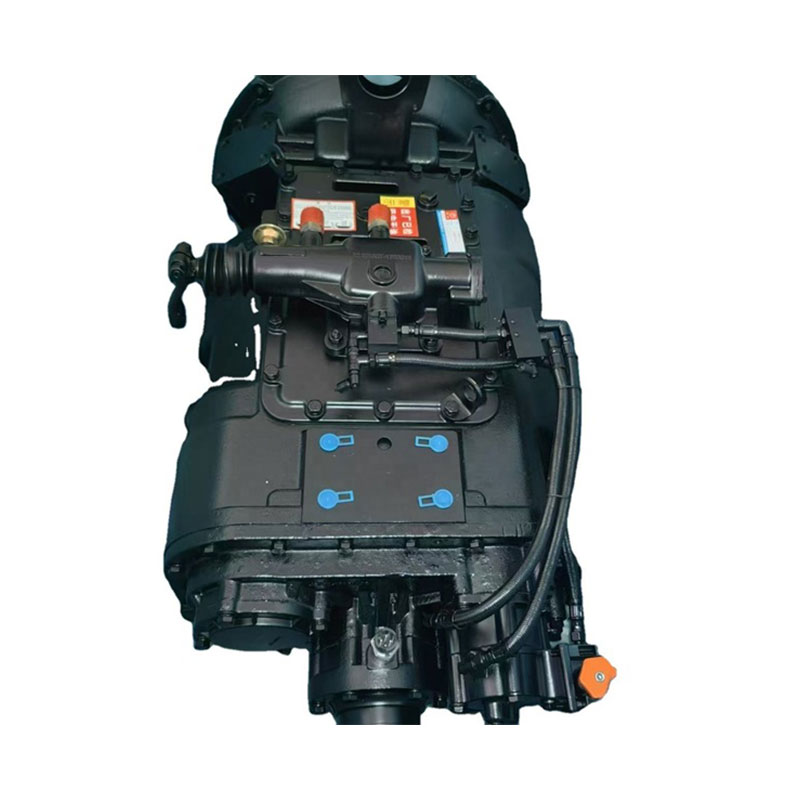

Usasazo lweDSG oluLungisiweyo oluzenzekelayo

UThutho lwe-DSG oluSebenzayo oluSebenzayo oluLundisiweyo nguSkyond yinkqubo yebhokisi yegiya ye-12-speed manual-automatic hybrid eyilelwe ngokukodwa iindawo zothutho ezinomthwalo ophezulu. Idibanisa amandla esakhiwo sothumelo lwencwadana yemveli kunye nokutshintsha ngokufanelekileyo kwenkqubo ezenzekelayo ye-clutch, eyenza ilungele ukuhanjiswa kwexesha elide, imisebenzi yemigodi, kunye nezicelo zothutho lweziseko zophuhliso.

Le DSG Transmission Assembly Automatic Gearbox yenziwe ngobunjineli obungqingqwa be-12JS uthotho loyilo, olusetyenziswa ngokubanzi kwizithuthi zorhwebo ezinzima. Idizayini yayo ye-clutch kabini yenza ukuba kukhethwe kwangaphambili iigiya, ukunciphisa ukuphazamiseka kwe-torque ngexesha lokutshintsha kunye nokuphucula ukuzinza kokuqhuba phantsi kweemeko zomthwalo oqhubekayo.

Yenzelwe ukuhambelana ne-HOWO T7H, i-C7H, i-C9H, kunye ne-Shaanxi kunye ne-Foton iilori ezinzima, le nkqubo isetyenziswa ngokubanzi njengesisombululo esithembekileyo sokutshintshwa okanye ukulungiswa kwakhona kokuhanjiswa kweendawo zokusebenza.

Yintoni uThutho lwe-DSG oluLungisiweyo oluzenzekelayo?

I-Automatic Repaired DSG Transmission yi-gearbox ye-automated-clutch ephindwe kabini eyenzelwe ukuguqula i-heavy-duty 12-speed manual transmission ibe yi-semi-automatic shifting system.

Umgaqo wayo wokusebenza:

I-clutch enye ilawula iigiya ezinamanani angaqhelekanga

Enye i-clutch ilawula iigiya ezinamanani alinganayo

Isixokelelwano sisebenzisela ngaphambili igiya elandelayo ngelixa isasebenza

Oku kubangela unikezelo lwamandla olusondeleyo, luyenza ilungele izithuthi zorhwebo ezifuna ukukhutshwa kwetorque engaguqukiyo kunye notshintsho lwegiya rhoqo.

Ukucaciswa kweMveliso

Ulwakhiwo olungundoqo kunye neNgcaciso yobuNjineli

UThutho lwe-DSG oluLundisiweyo oluSebenzayo lwakhiwe phezu koyilo lwebhokisi ye-gearbox ene-clutch eyohlula umnqakathi kunye neseti yegiya kwiinkqubo ezimbini ezizimeleyo zeclutch. Oku kuvumela ukuhanjiswa ukuba ukhethe kwangaphambili igiya elilandelayo ngaphambi kokuba igiya yangoku ikhuphe, iphucule kakhulu ukusebenza kakuhle kokutshintsha.

Ngokungafaniyo nokuhanjiswa kwezandla okuqhelekileyo, le nkqubo inciphisa ukuphazamiseka kwamandla ngexesha lokutshintsha kwegiya, ebaluleke kakhulu:

Ukuthuthwa kwempahla enzima

Ukuqhuba ngokuqhubekayo umqansa

Iimeko eziguquguqukayo ezikwi-frequency ephezulu

Ulungiselelo lothutho lomgama omde

Uguqulelo olulungisiweyo kunye nolwenziwa ngokutsha lugxile ekubuyiseleni imfezeko yoqobo yomatshini wesiseko sebhokisi yegiya, iqinisekisa ukuba onke amacandelo abalulekileyo asebenza ngaphakathi kokunyamezela kwinqanaba lomzi-mveliso.

Amalungu aphambili angaphakathi aquka:

Iiseti zegiya kunye neeshafti (12JS isiseko solwakhiwo)

Iindibano ze-synchronizer

Inkqubo yokulawula i-hydraulic

Indlela yokubamba kabini

Ukuhanjiswa kwezindlu kunye nenkqubo yolungelelwaniso

Iyunithi nganye icutshungulwa ngokuhlola, ukulungiswa, kunye nezigaba zokulinganisa ukubuyisela ukusebenza ngokungaguqukiyo.

Izinto eziluncedo kwimveliso

I-12-Speed ​​​​High Torque Capacity Design

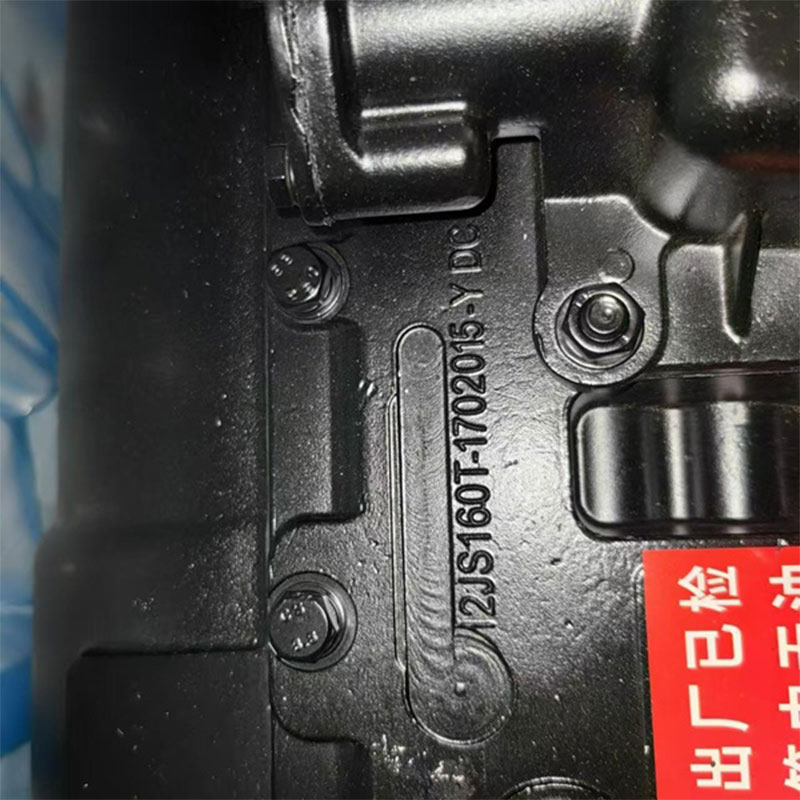

Ukucwangciswa kwe-12JS160T, 12JS180T, kunye ne-12JS200T yenzelwe iimeko zokufaka i-torque ephezulu, ukuxhasa iinjini ze-diesel ezinzima ezisetyenziswa ngokuqhelekileyo kwiindidi ze-11L-13L zokufuduka.

Ukuhanjiswa kwetorque ezinzileyo phantsi komthwalo ogcweleyo

Ukunciphisa umngcipheko wokutyibilika kwegiya

Ukuphucula ukuxhathisa kwe-thermal phantsi kwemijikelezo emide yokusebenza

Uzinzo olungcono lwe-drivetrain kwiimeko zemigodi kunye nempahla

Rapid Dual-Clutch Shift Response

Inkqubo ye-clutch ephindwe kabini ivumela ibhokisi yegiya ukuba ilungiselele igiya elilandelayo ngaphambi kokuba kutshintshe. Esi sakhiwo siphucula kakhulu isantya sokuphendula xa kuthelekiswa nokuhanjiswa kwezandla okuqhelekileyo.

Izibonelelo ziquka:

Ukukhawulezisa okugudileyo kwiimitha eziphakamileyo

Ukunciphisa ukunxiba kwe-clutch ngokuhamba kwexesha

Amava okuqhuba azinzileyo phantsi kokwahluka komthwalo

Ukuphuculwa kokusebenza kwepetroli ngokusebenzisa ixesha leshifti elilungisiweyo

Ulwakhiwo lokuFakelo oluhambelana ne-OEM

UThutho lwe-DSG oluLungisiweyo oluzenzekelayo luyilwe ngojongano olusemgangathweni oluhambelana no:

Iinkqubo zelori ze-Shaanxi ezinzima

Izakhiwo ze-MAN drivetrain

Foton amaqonga elori enzima

Oku kuqinisekisa:

Ufakelo oluthe ngqo ngaphandle kokuguqulwa

Ukuhambelana neenkqubo ezikhoyo zokuqhuba

Ukuncitshiswa kwexesha lolondolozo

Inkqubo yokutshintshwa eyenziwe lula

Inkqubo yoLawulo lweHydraulic eCalibrated

Umzimba wevalve yehydraulic kunye ne-solenoid system iyavavanywa kwaye ilinganiswe ukuze ihambelane ne-ECU shift logic. Oku kunceda ekuthinteleni ukuziphatha okungaqhelekanga kosulelo olufana nokuzingela izixhobo okanye ukulibaziseka kokutshintsha.

Iziphumo eziphambili:

Imveliso yetorque ezinzileyo enesantya esiphantsi

Ixesha lokusebenzisana kwezixhobo ezihambelanayo

Ukuphucula ulungelelwaniso phakathi kwenjini kunye nebhokisi yegiya

Ukunciphisa ukuhanjiswa kwe-vibration ngexesha lokusebenza

Ukuqina koomatshini okuqinisekisiweyo

Usasazo ngalunye olulungisiweyo lwe-DSG luvavanywa ngokusebenza kunye novavanyo lwesakhiwo. Oku kuqinisekisa:

I-casing efanelekileyo ingqibelelo phantsi komthwalo

Ukulungelelaniswa ngokuchanekileyo kweeshafu zangaphakathi

Ukusebenza okuthembekileyo kwiindawo zokungcangcazela-nzima

Ubomi benkonzo ende phantsi kokusetyenziswa rhoqo

Product Application Scope

Le nkqubo yothumelo isetyenziswa ngokubanzi njengeyunithi yokutshintshwa okanye eyenziwe ngokutsha kwiilori ezinomthwalo onzima ezixhotyiswe nge:

Shaanxi drivetrains

Iinkqubo zeenjini ezisekelwe kuMNTU

Foton amaqonga elori enzima

Ilungele ngakumbi izithuthi ezisebenza:

Uthutho lolungiselelo lomgama omde

Ukuthuthwa kwezinto zokwakha

Imisebenzi yemigodi kunye nekwari

Umthwalo onzima kunye nomthwalo wamashishini

Ukuhambelana kweenjini eziqhelekileyo ukusuka kwi-371HP ukuya kwimodeli ye-540HP, kubandakanywa amaqonga asetyenziswa ngokuqhelekileyo afana ne-HOWO T7H kunye ne-C7H yezithuthi.

Kutheni uLawulo loMgangatho lubalulekile kwiiNkqubo zoThutho

Iinkqubo zokuhambisa zisebenza phantsi kweemeko ezigqithisileyo zoomatshini, kubandakanywa ukushisa okuphezulu, ukukhuhlana okuqhubekayo, kunye nemithwalo ye-torque eguquguqukayo. Nokuba iziphene ezingephi kumalungu angaphakathi zinokukhokelela kukusilela okukhulu ekusebenzeni.

Ke ngoko, ulawulo oluluqilima lomgangatho lubalulekile kuThumelo lwe-DSG oluLundisiweyo oluSebenzayo ukuqinisekisa ukuthembeka kunye nokuzinza kokusebenza.

IiNkqubo eziPhambili zoLawulo loMgangatho zibandakanya:

1. Uvavanyo lokuqina kweMaterial for components gear

2. Ukuhlolwa kokuchaneka kwezixhobo zokuxhuma

3. Isiqinisekiso sengqibelelo yotywino

4. Uvavanyo lokuzinza koxinzelelo lwe-Hydraulic

5. Uvavanyo lokulinganisa umthwalo oguqukayo

6. Isignali ye-elektroniki kunye ne-solenoid diagnostics

Ezi nkqubo ziqinisekisa ukuba iyunithi nganye yothumelo igcina intsebenzo ezinzileyo phantsi koshishino lwexesha elide.

Kutheni Khetha iSkyyond

Njengomvelisi ovunyiweyo kunye nomboneleli kushishino lwamalungu elori enzima, iSkyond ibonelela ngemveliso ehlanganisiweyo kunye nokubonelela ngezakhono kwiinkqubo zothumelo kunye nezinto ezinxulumeneyo.

1. Amava kuShishino

Ngaphezulu kweminyaka eyi-15 yamava oshishino, inkampani iye yaphuhlisa ubuchule obuqinileyo kwilori enzima kunye noomatshini bokwakha oomatshini bokwenza, besebenza kwiimarike zasekhaya nezamazwe ngamazwe.

2. IZiko lokuZivelisa ngokuZedwa

I-Skyond isebenzisa isiseko sayo semveliso esixhotyiswe ngoomatshini bale mihla kunye nenkqubo yokwenziwa komsebenzi eyakhiweyo, iqinisekisa:

Imveliso ezinzileyo yemveliso

Umgangatho wokuvelisa olawulwayo

Ukukwazi ukuphatha iiodolo ezinkulu

3. Umgangatho weMveliso engqinelanayo

Ngeenkqubo zokuvelisa ezisemgangathweni kunye nentsebenziswano yexesha elide kwishishini, inkampani iqinisekisa ukuhambelana kunye nokuthembeka kuwo wonke amaqonga ezithuthi ezinomthwalo onzima.

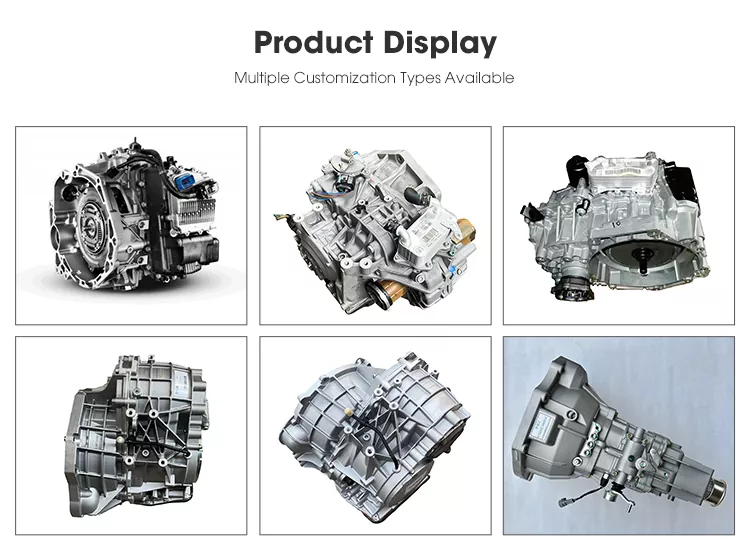

4. Uluhlu lweeMveliso eziBanzi

Ukongeza kwi-Automatic Repaired DSG Transmission, inkampani ibonelela ngezinto ezininzi ezahlukeneyo, kubandakanya iinxalenye ze-injini, izihluzi, iisistim zebrake, amabhanti kunye ne-tensioners, iinxalenye zokukhupha, iinkqubo zehydraulic, kunye neendibano zokuhambisa. Olu nikezelo lubanzi luvumela abathengi ukuba bafumane ngokulula iindidi zeemveliso ezininzi kumnikezeli omnye.

5. Inkqubo yoBugcisa obukrelekrele

Inkqubo yale mihla yokugcina eyi-10,000㎡ ixhasa ukugcinwa okucwangcisiweyo, ukufunyanwa ngokukhawuleza kwempahla, kunye nokusetyenzwa kweodolo esebenzayo yokusasazwa kwehlabathi.

6. OEM & Custom Manufacturing Inkxaso

Inkampani ixhasa imveliso ye-OEM kunye nezisombululo ezilungiselelwe ngokusekwe:

Imizobo yobugcisa

Iisampulu

Iimfuno zesicelo

Oku kuqinisekisa ukuguquguquka kwiimarike ezahlukeneyo kunye neemfuno zezithuthi.

7. UZinzo lweGlobal Supply Capability

Ngomthamo owomeleleyo wemveliso kunye nolawulo lwempahla, inkampani ibonelela ngemijikelo yonikezelo oluzinzile kwaye ixhasa intsebenziswano yexesha elide kunye nabathengi bamazwe ngamazwe.

FAQ

Q1: Yintoni umahluko phakathi 160T, 180T, kunye 200T imifuziselo?

La manani emodeli amele amanqanaba omthamo we-torque: 1600Nm, 1800Nm, 2000Nm Imodeli echanekileyo kufuneka ikhethwe ngokusekelwe kumandla enjini kunye neemfuno zomthwalo wesithuthi.

Q2: Ngaba le DSG transmission iyahambelana HOWO T7H?

Ewe, le nkqubo ye-12-speed transmission isetyenziswa ngokuqhelekileyo kwiiplatifti ze-HOWO T7H kunye ne-C7H ezixhotyiswe nge-MAN okanye iinjini ezisekelwe kwi-Sinotruk. Nangona kunjalo, ukuqinisekiswa kobumbeko lwe-spline kunye nokulungelelaniswa kokunyuka kuyacetyiswa ngaphambi kofakelo.

I-Q3: Ngaba iyunithi elungisiweyo ibandakanya amacandelo e-elektroniki?

Ewe, i-DSG Transmission Assembly Automatic Gearbox ibandakanya amacandelo olawulo afakwe ngaphambili kunye novavanyo olufana ne-solenoids kunye neenkqubo zokulawula ezidibeneyo, ezivumela ukuhambelana neenkqubo ezikhoyo zocingo zemoto ukuze kube lula ukufakwa.

I-Q4: Iyintoni inzuzo ephambili yenkqubo ye-clutch ephindwe kabini?

Inzuzo ephambili kukunikezelwa kwamandla okuqhubekayo ngexesha lokutshintshwa kwegiya, okuphucula ukusebenza kakuhle, ukunciphisa ukunxiba, kunye nokwandisa ukuzinza kokuqhuba phantsi kweemeko zomthwalo onzima.
